Advanced Controls – Image Adjustment

Geometric Correction: (projector only)

Function	Descriptions

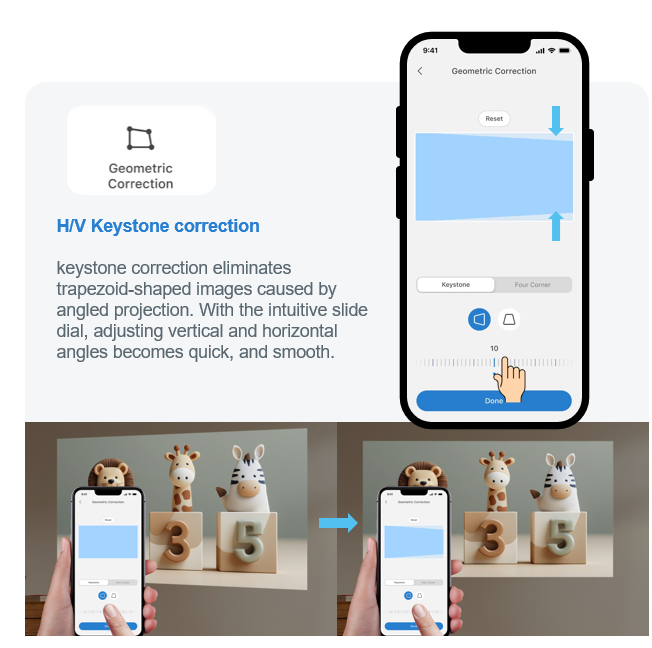

Keystone	Adjust vertical and horizontal keystone values to correct image distortion.

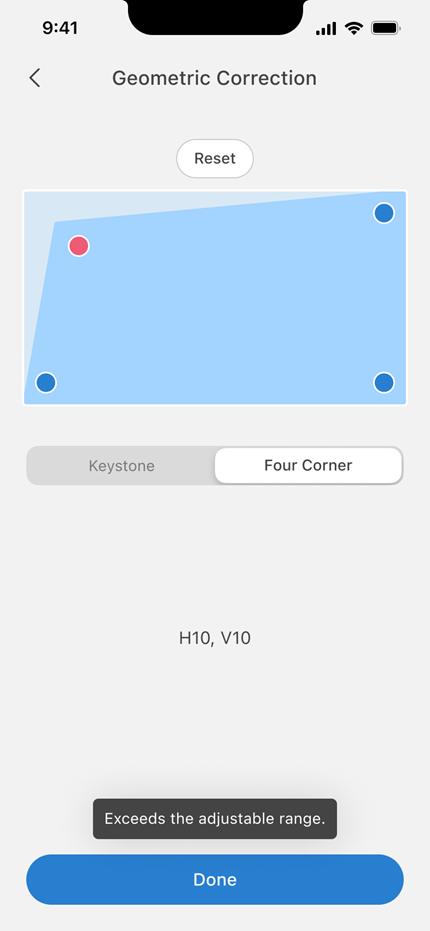

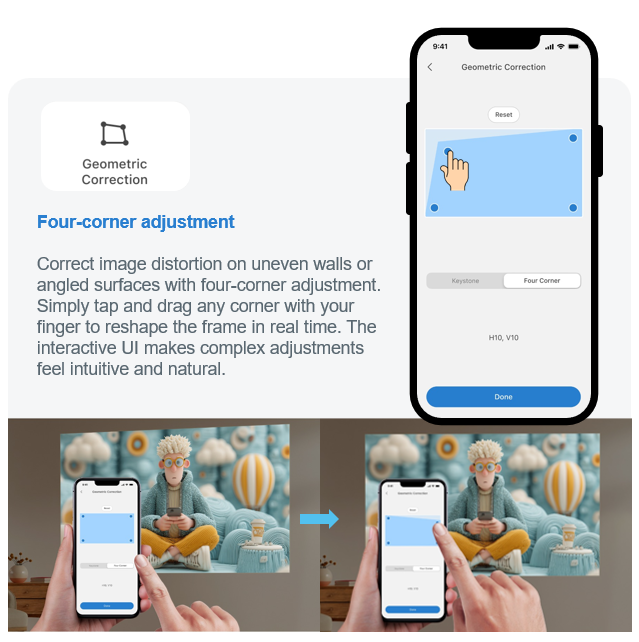

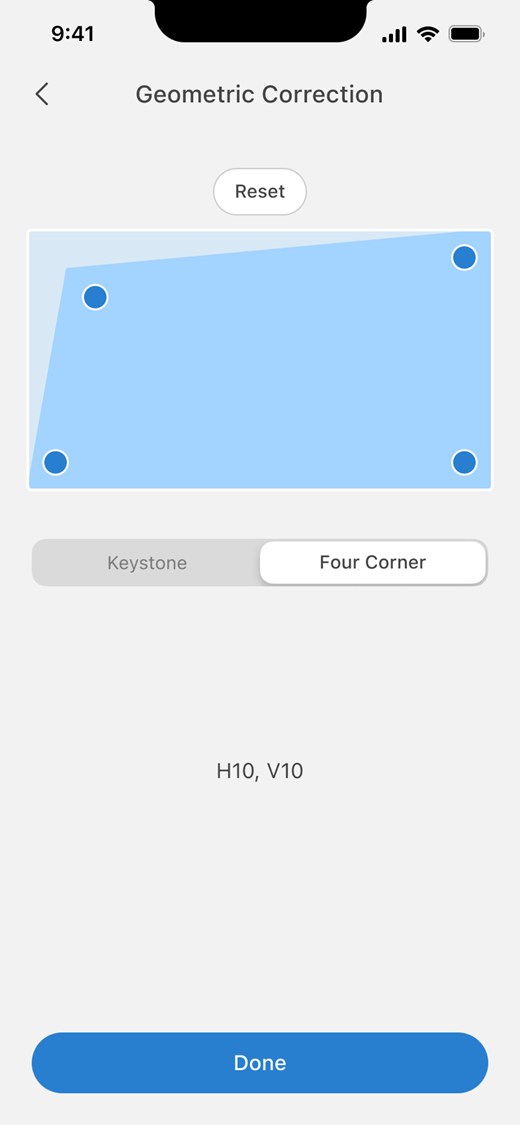

Four Corner	Manually drag the four corners of the image to fit your screen perfectly. : Out of range. Unable to set the value on the projector.

Smart Adjustment (Projector only)

Function	Descriptions

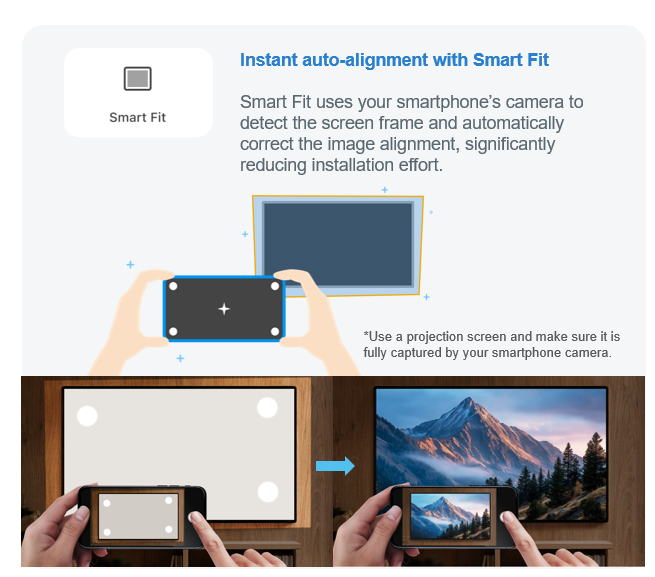

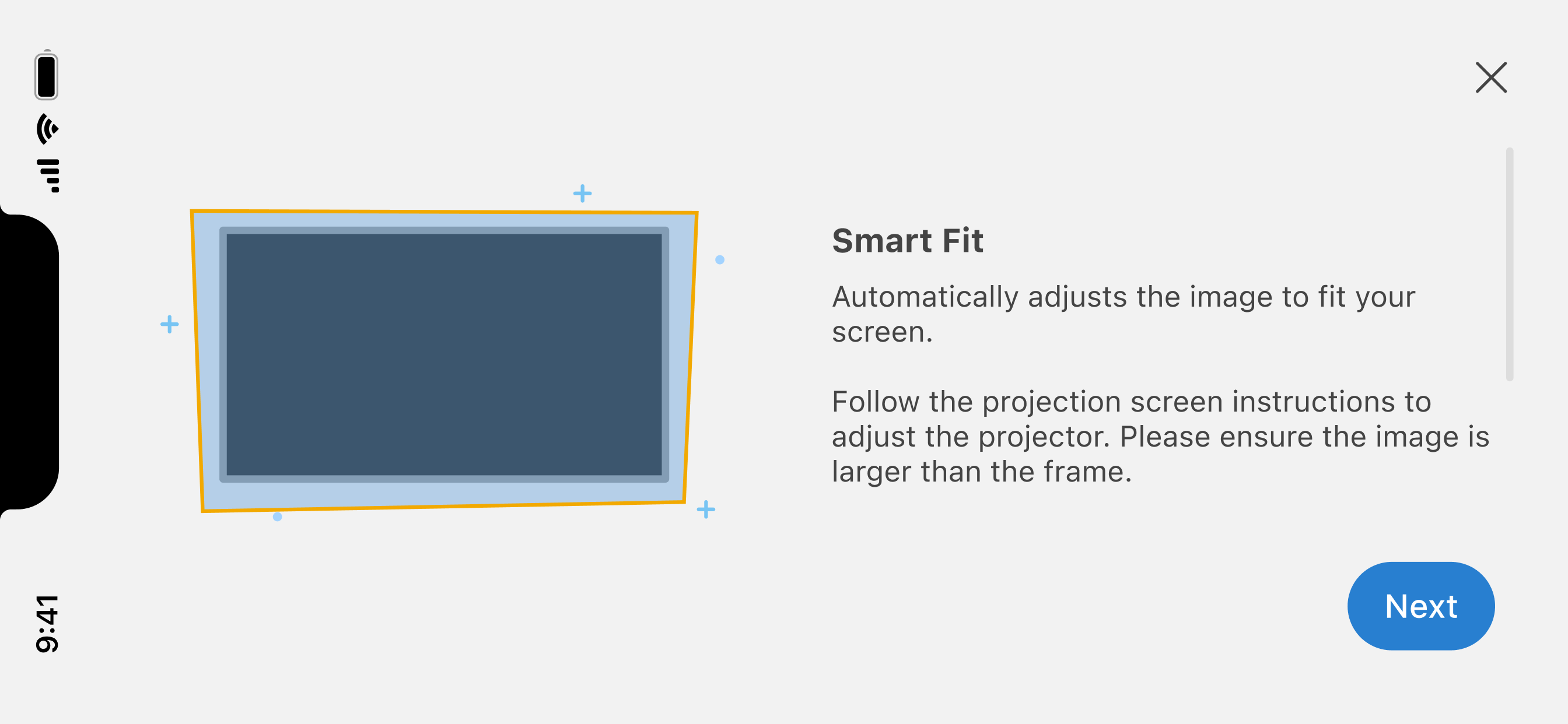

Smart Fit	Automatically adjusts the image to fit your screen. Follow the projection screen instructions to adjust the projector.  Please ensure the captured image is larger than the frame. For best results, hold the phone within a ±30° horizontal angle and ensure all four dots are fully captured in the image.

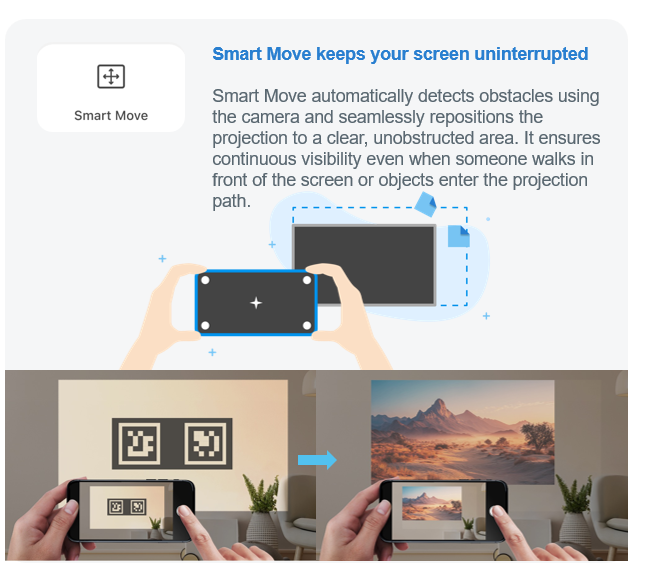

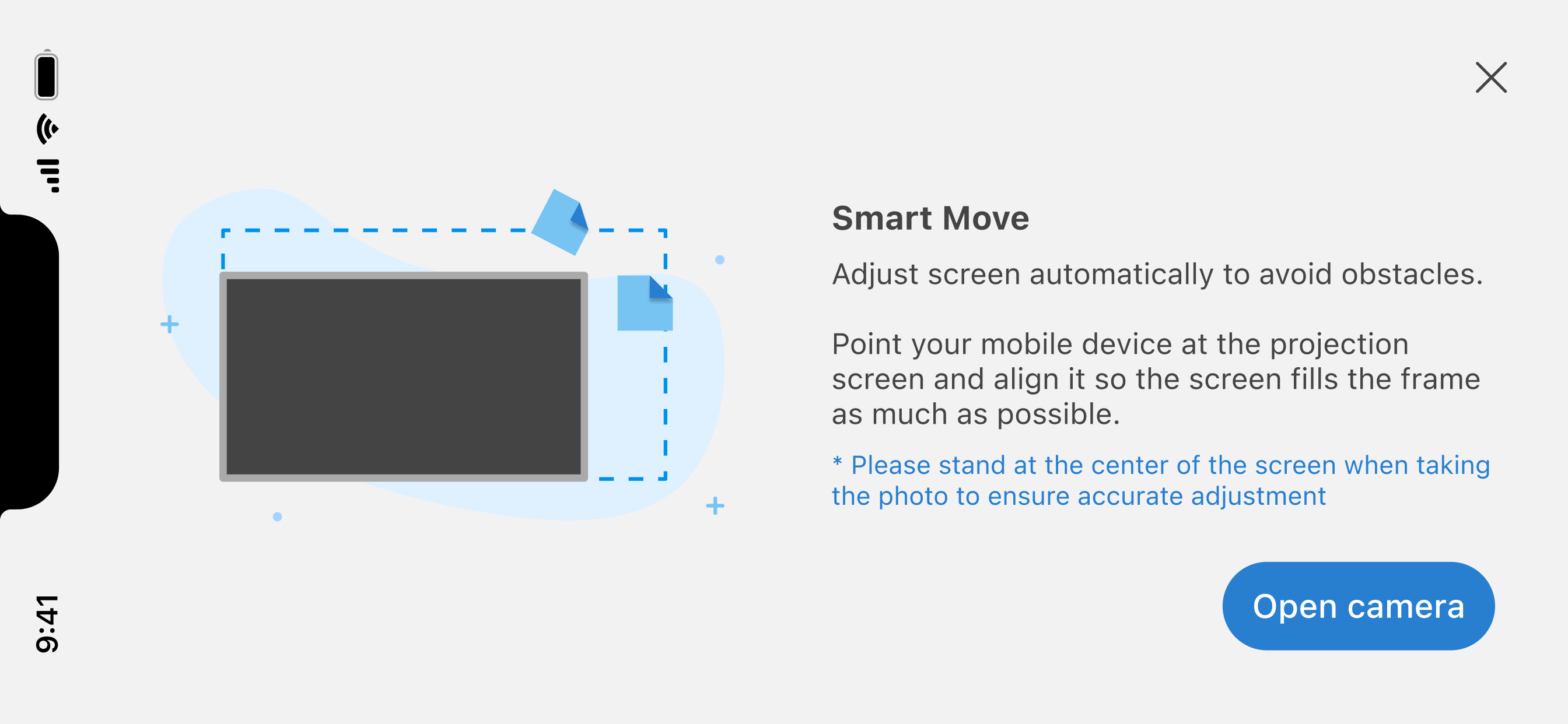

Smart Move	Adjust screen automatically to avoid obstacles.  For best results, hold the phone within a ±30° horizontal angle and ensure that both barcodes are fully captured in the image.
